Description

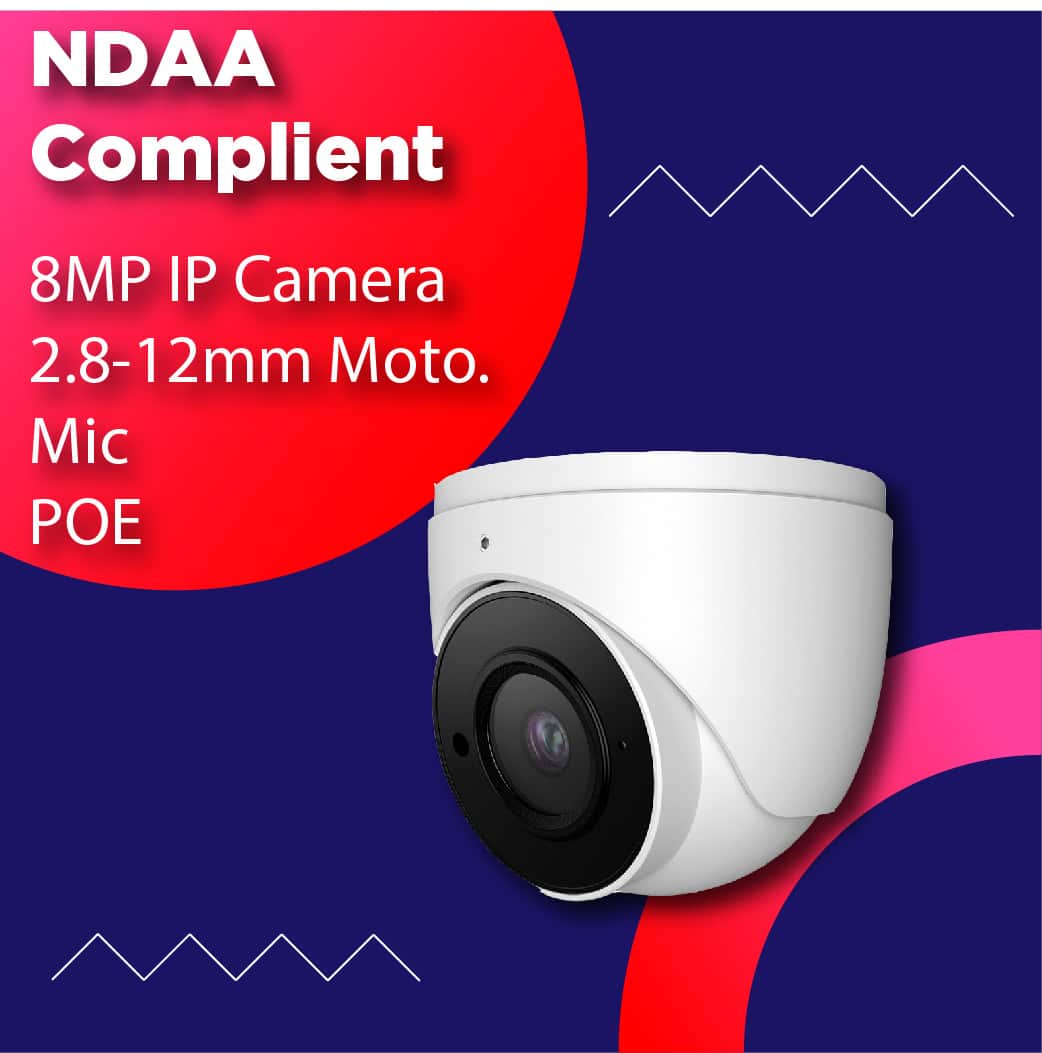

8MP IR Motorized Eyeball Network Security Camera IP-5IRD8S35/MZNDAA
Turret IP/ Networking Security Camera,1/3″,8MP@20FPS,2.8-12mm Motorized , IR 50m(164ft),DWDR,video content analytics (VCA) ,Built-in mic,SD Slot.
- 8MP ( 3840 × 2160 ) H.265 coding
- Max.resolution: 3840 2160
- ICR auto switch, true day/night, ROI coding
- 3D DNR, DWDR, HLC, BLC, Defog
- 30~50m IR night view distance
- DC12V/PoE power supply
- P2P function optional
- IP67
- Support three streams
- Support remote monitoring by smartphone & tablets PCs with iOS and Android OS
- Intelligent analytics
| Image Sensor | 1 / 3 “CMOS |
|---|---|
| Image Size | 3840 × 2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Minimum Illumination | 0.11 lux @F2.2, AGC ON; 0 lux with IR 0.032 lux @ F1.2, AGC ON; 0 lux with IR |
| Focal Length | 2.8~12 mm @F1.4 |
| Angle of View | Horizontal field of view:102.7°~32.2° |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~80°; Rotation: 0°~360° |
| IR Distance | 30 ~ 50 m |
| Wide Dynamic Range | DWDR |
| Video Compression | H.265 / H.264 |
| Video Resolution | 8MP ( 3840 × 2160 ), 6MP ( 3 × 2048 ), 5MP ( 2592 × 1944 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Video Frame Rate | Main Stream: 8MP/ 6MP/ 5MP(1~20fps) Sub Stream: 720P/D1/CIF(1~20fps) Third Stream: D1/CIF/480×240(1~20fps) |
| Video Bitrate | 64 Kbps ~ 8 Mbps |
| Day / Night | True day / night |
| BLC Mode | Yes |
| HLC | Yes |
| ROI | Each ROI to be configured separately |
| Digital Noise Reduction | 3D DNR |
| Defog | Yes |
| Audio Compression | G711A / U |
| Audio In | 1CH audio input; 1CH built-in MIC |
| Smart Alarm | Motion detection, Sensor alarm detection, SD card error, SD card full |
| Intelligent Analytics | Region intrusion detection, scene change detection, object removal detection and line crossing detection |
| Ethernet | RJ45 |
| Network Protocol | UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS |
| Storage | Network remote storage; micro SD card storage |
| Storage Card | Built-in micro SD card slot; up to 128GB |
| General Function | Watermark, IP address filtering, video mask, heartbeat, illegal login lock |
| Network Max. Users | Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission |
| Mobile | iPhone, Android |
| Power Supply | DC12V/PoE |
| Power Consumption | < 9.5W |
| Operating Temperature | – 30 °C ~ 60 (-22°F~140°F) Humidity: less than 95 % (non-condensing ) |
| Ingress Protection | IP67 |
| Dimensions | Φ 111.5 × 99.6mm |
| Weight | Approx. 0.70KG |
