Description

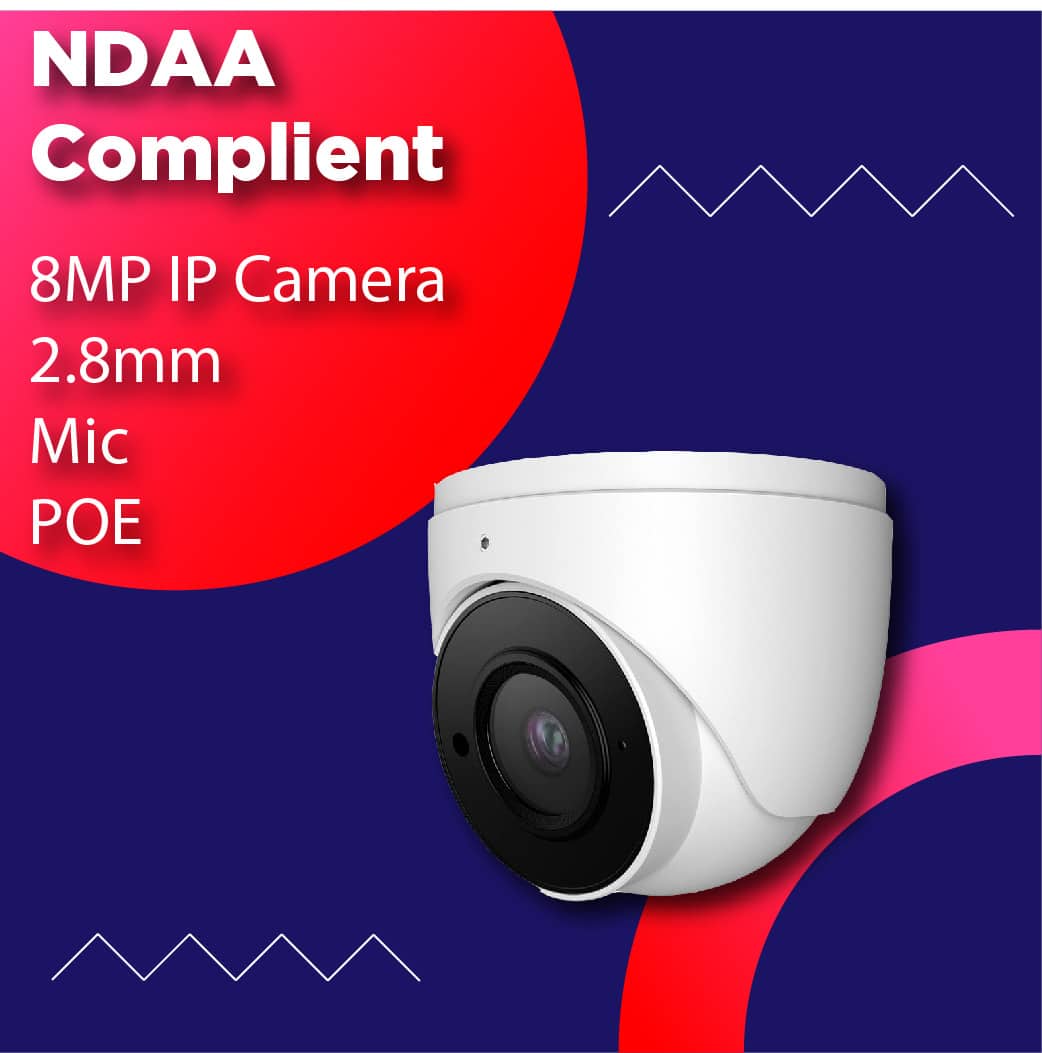

8MP HD Turret Network Fixed Security Camera IP-5IRD8S34/28-2NDAA
4k 2.8mm Fixed Turret Networking / Internet Protocol Security Camera (IPC),1/3″,8MP@20FPS,, IR(98ft), true WDR, VCA, Built-in Surveillance Storage: Micro SD Card, also known as a TF (Trans Flash) Card, is a small flash memory card used in security cameras. (SD). Remote viewing from your mobile with ENS Security. you can quickly and easily view your security system remotely through your smartphone, tablet, or PC. free download app and no monthly fees.
Features
- H.265+/H.265/H.264+/H.264 coding
- Max.resolution: 8MP ( 3840 × 2160 )
- ICR auto switch, true day/night vision
- 3D DNR, True WDR, HLC, BLC, smart IR, and ROI coding
- Lens distortion correction supported
- 30m(98ft) IR night view distance
- 1CH audio input; 1CH built-in MIC
- Built-in micro SD card slot, up to 256GB
- DC12V/PoE power supply
- Support three streams
- P2P function optional
- IP 67
- Support mobile surveillance by smartphones with iOS and Android OS Intelligent analytics, Support simultaneous monitoring for up to 10 users; Support multi-stream real-time transmission.
- Remote Monitoring: Web browsing, CMS remote control.
- Smart Alarm: Motion detection; SD card error; SD card full.
- Intelligent Analytics: Scene change, video blur detection, video color cast detection, line crossing detection, intrusion detection. General function: Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc.
| Image Sensor | 1 / 2.8 “CMOS |
|---|---|
| Image Size | 3840×2160 |
| Electronic Shutter | 1 / 25 s ~ 1 / 100000 s |
| Minimum Illumination | 0.06 lux @ F1.6, AGC ON; 0 lux with IR 0.1lux@F2.0, AGC ON; 0 lux with IR |
| Focal Length | 2.8mm |
| Angle of View | 2.8 mm @F1.6, Horizontal FoV:109.7°; Vertical FoV:77.2°; Diagonal FoV:116.9° |
| Angle Adjustment | Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360° |
| IR Distance | Distance up to 30m (98.43ft) |
| Wide Dynamic Range | 120dB |
| Video Compression | H.265+ / H.265 / H.264+ / H.264 |
| Video Resolution | 8MP ( 3840 × 2160 ), 6MP( 3072 × 2048 ),5MP( 2592 × 1944), 4MP ( 2560 × 1440 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240 |
| Video Frame Rate |
|
| Video Bitrate | 64 Kbps ~ 12 Mbps |
| Day / Night | ICR |
| Video Encode | VBR / CBR |
| BLC Mode | Yes |
| HLC | Yes |
| ROI | 3 ROI, Each ROI to be configured separately |
| Image Settings | ROI, Saturation, Brightness, Chroma, Contrast,Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser |
| Digital Noise Reduction | 3D DNR |
| Defog | Yes |
| Audio Compression | G711A / U |
| Audio In | 1CH built-in MIC; |
| Audio Out | 1CH audio input |
| Smart Alarm | Motion detection; SD card error; SD card full |
| Intelligent Analytics | Scene change, video blur detection, video color cast detection, line crossing detection, intrusion detection. |
| General Intelligence | Watermark, IP address filtering, video mask, heartbeat, password protection, image distortion correction, etc. |
| Network Protocol | UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, ICMP, IGMP, PPPoE, DDNS, SMTP, FTP, SNMP,HTTP, 802.1x, UPnP, HTTPs, QoS |
| Storage | Network remote storage; micro SD card storage |
| Storage Card | Built-in micro SD card slot; up to 256GB |
| Web Viewer | Web browsing, CMS remote control |
| Mobile | iPhone, Android |
| Power Supply | DC12V/PoE |
| Power Consumption | < 9W |
| Operating Temperature | – 30 °C ~ 60 (-22 Humidity: less than 95 % non condensing °C ( – ) °F~140°F) |
| Ingress Protection | IP67 |
| Dimensions | Φ 94.6 × 82.8 |
| Weight | Weight ( net) Approx. 0.46KG,1.01lb |
