4MP Network IR 2.8 Fixed Dome Security IP Camera NDAA

$104.99

Turret IP/ Networking Security Camera,1/2.7”,4MP@30FPS,2.8mm Fixed ,IR 30m(98ft),DWDR,VCA,Built-in Mic.



Category:

Description

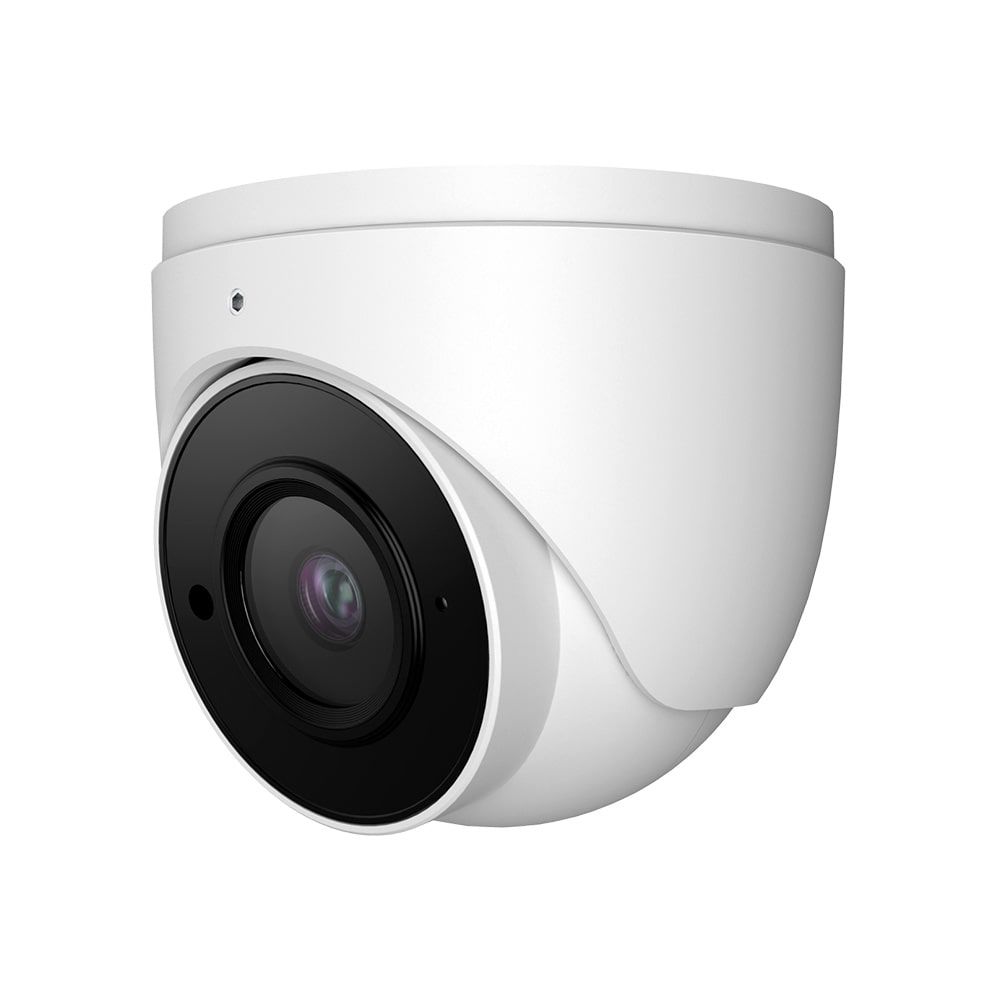

4MP Network IR 2.8 Fixed Dome Security Camera IP-5IRD4S34/28NDAA

Turret IP/ Networking Security Camera,1/2.7”,4MP@30FPS,2.8mm Fixed ,IR 30m(98ft),DWDR,VCA,Built-in Mic.



  • 4MP ( 2560 × 1440) H.265 coding
  • Max.resolution: 2560 1440
  • ICR auto switch, true day / night, ROI coding
  • 3D DNR, digital WDR, HLC, BLC, defog
  • 20~30m IR night view distance
  • DC12V/PoE power supply
  • 1CH built-in MIC
  • P2P function optional
  • IP 67 ingress protection
  • Support three streams
  • Support remote monitoring by smartphones&tablet PCs with iOS and Android OS
  • Intelligent analytics: object removal detection, abnormal video signal detection, line crossing detection, and region intrusion detection
Image Sensor 1 / 2.7 “CMOS
Image Size 2560×1440
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Minimum Illumination 0.011 lux @F1.2, AGC ON; 0 lux with IR
0.04 lux @ F2.26, AGC ON; 0 lux with IR
Focal Length 2.8 mm
Angle of View horizontal field of view: °
Angle Adjustment Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
IR Distance 20 ~ 30 m
Wide Dynamic Range Digital WDR
Video Compression H.265 / H.264
Video Resolution 4MP ( 2560 × 1440 ), 3MP ( 2304 × 1296 ), 1080P ( 1920 × 1080 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Video Frame Rate Main Stream: 60Hz : 4MP/3MP/1080P(1~30fps); 50Hz : 4MP/3MP/1080P(1~25fps)

Sub Stream: 60Hz : 720P(1~15fps)/D1 /CIF (1~30fps);
50HZ: 720P(1~12fps)/D1(1~25fps)/CIF (1~25fps);

Third Stream: 60Hz : D1/CIF/480×240 (1~30fps); 50HZ: D1/CIF/480×240 (1~25fps)

Video Bitrate 64 Kbps ~ 5 Mbps
Day / Night true day / night,
BLC Mode Yes
HLC Yes
ROI Each ROI to be configured separately
Digital Noise Reduction 3D DNR
Defog Yes
Audio In 1CH built-in MIC
Ethernet RJ45
Network Protocol UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, 802.1x, UPnP, HTTP, HTTPs, QoS
Storage Network remote storage
General Function Watermark, IP address filtering, video mask, heartbeat, password protection
Network Max. Users Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
Mobile iPhone, Android
Power Supply DC12V/PoE
Power Consumption < 5.5W
Operating Temperature – 30 °C ~ 60 °C (-22°F~140°F) Humidity: less than 95 % (non-condensing )
Ingress Protection IP67
Dimensions Φ 94.6 × 82.8mm
Weight Approx. 0.45KG
