Ti 8MP IP Turret Camera 2.8mm, 20FPS White

$209.99

Available on backorder

SKU: IP-5IRD8S34/28 Categories: , ,

Description

Fixed Turret,1/3″,8MP@20FPS,2.8mm,IR(98ft),DWDR,VCA,Built-in mic,SD Slot



  • 8MP ( 3840 × 2160 ) H.265 coding
  • Max.resolution: 3840 2160
  • ICR auto switch, true day/night, ROI coding
  • 3D DNR, DWDR, HLC, BLC, Defog

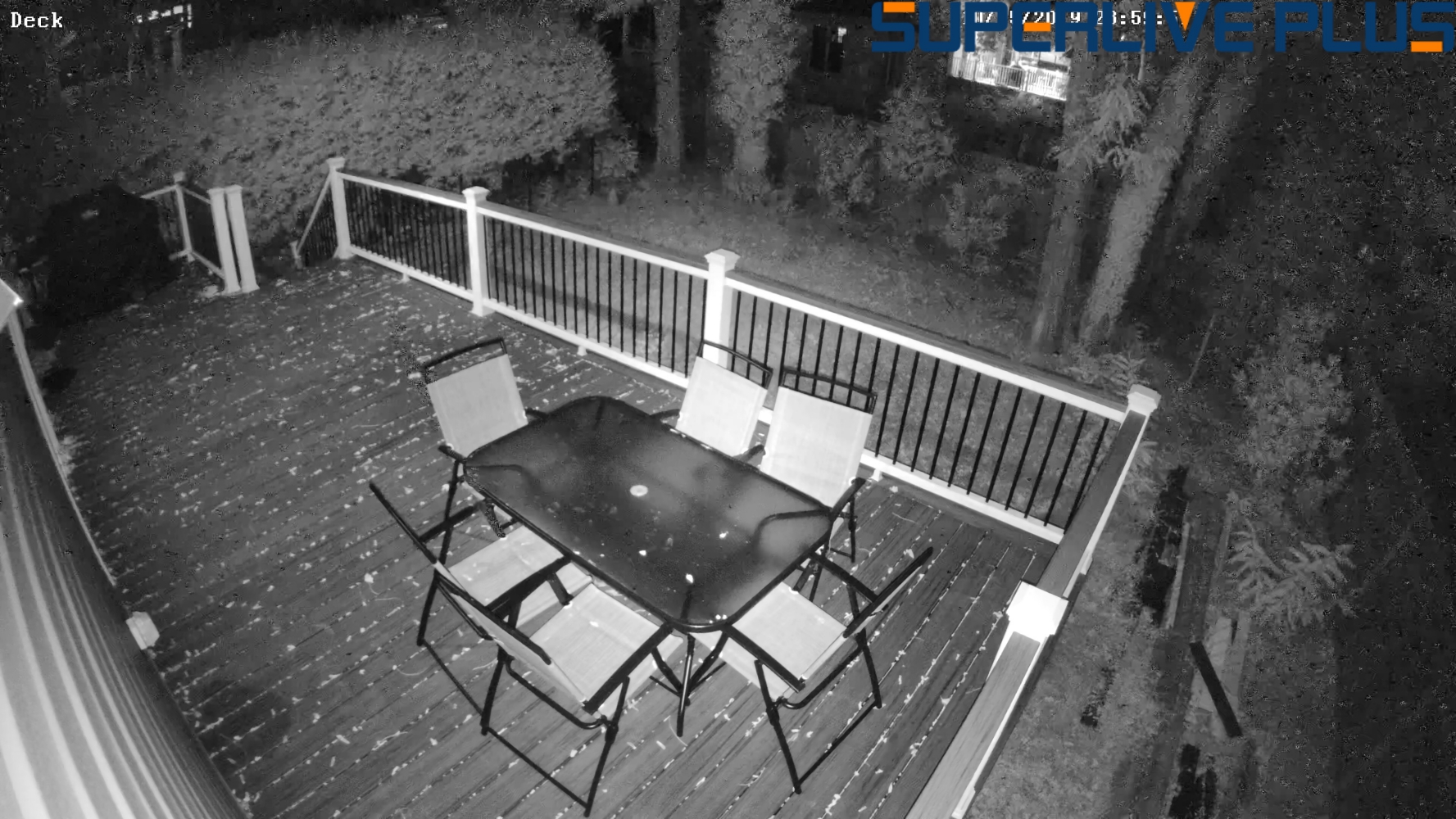

  • 20~30m IR night view distance
  • DC12V/PoE power supply
  • P2P function optional
  • IP67
  • Support three streams
  • Support remote monitoring by smartphone & tablets PCs with iOS and Android OS
  • Intelligent analytics
More Information
Image Sensor 1 / 3 “CMOS
Image Size 3840 × 2160
Electronic Shutter 1 / 25 s ~ 1 / 100000 s
Minimum Illumination 0.11 lux @F2.2, AGC ON; 0 lux with IR
0.032 lux @ F1.2, AGC ON; 0 lux with IR
Focal Length 2.8 mm @F2.0
Angle of View Horizontal field of view:112°
Angle Adjustment Pan: 0°~360°; Tilt:0°~75°; Rotation: 0°~360°
IR Distance 20 ~ 30 m
Wide Dynamic Range DWDR
Video Compression H.265 / H.264
Video Resolution 8MP ( 3840 × 2160 ), 6MP ( 3 × 2048 ), 5MP ( 2592 × 1944 ), 720P ( 1280 × 720 ), D1, CIF, 480 × 240
Video Frame Rate Main Stream: 8MP/ 6MP/ 5MP(1~20fps)
Sub Stream:  720P/D1/CIF(1~20fps)
Third Stream: D1/CIF/480×240(1~20fps)
Video Bitrate 64 Kbps ~ 8 Mbps
Day / Night True day / night
BLC Mode Yes
HLC Yes
ROI Each ROI to be configured separately
Digital Noise Reduction 3D DNR
Defog Yes
Audio Compression G711A / U
Audio In 1CH audio input; 1CH built-in MIC;
Smart Alarm Motion detection, sensor alarm, SD card error, SD card full
Intelligent Analytics Region intrusion detection, scene change detection, object removal detection and line crossing detection
Ethernet RJ45
Network Protocol UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, QoS
Storage Network remote storage; micro SD card storage
Storage Card Built-in micro SD card slot; up to 128GB
General Function Watermark, IP address filtering, video mask, heartbeat, illegal login lock
Network Max. Users Support simultaneous monitoring for up to 3 users; Support multi-stream real time transmission
Mobile iPhone, Android
Power Supply DC12V/PoE
Power Consumption < 7W
Operating Temperature – 30 °C ~ 60 (-22°F~140°F) Humidity: less than 95 % (non-condensing )
Ingress Protection IP67
Dimensions Φ 94.6 × 82.8mm
Weight Approx. 0.50KG

Additional information

Weight 3 lbs
Dimensions 6 × 6 × 6 in
